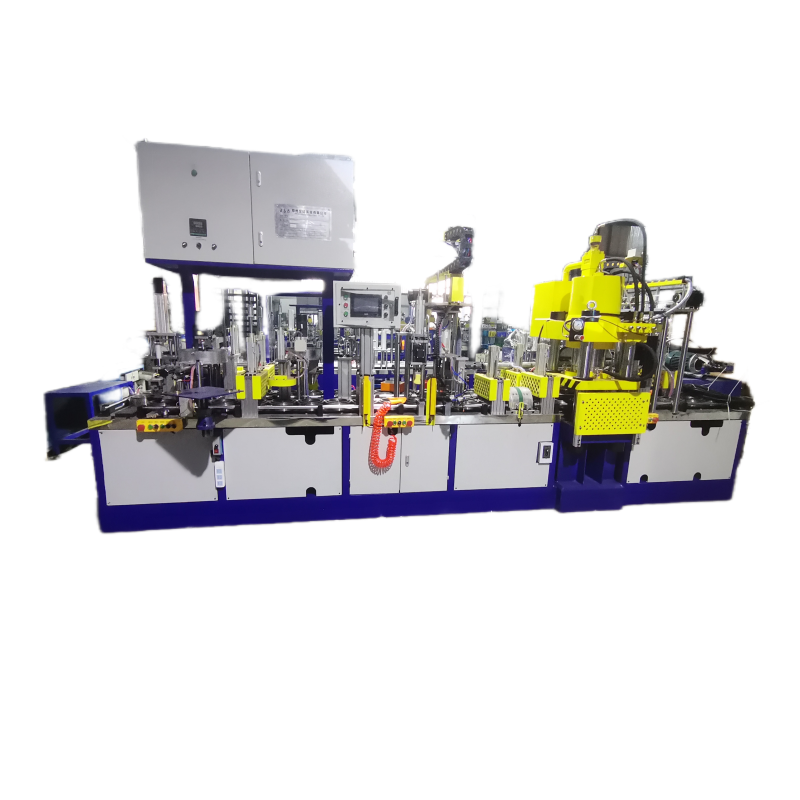

¢150-180 reinforced fiberglass cutting grinding wheel making machine

Share to:

¢150-230 pushing thirty six workstation mould machine for fiber reforced thin resin bond cutting wheels and depressed center wheels

  • CXJ150180
  • VALOUR
  • 68042210

Product Description

Technical specification:
(a) Products specifications: ¢150-230,thickness 1-8, flat, parallel, cymbals form, inter and outer net, paste brand etc different kinds cutting wheels and depressed center wheels;

(b) Rating press:315 ton, cast steel beam;

(c) Structure: pane pushing thirty six workstation;

(d) Scrape mode: fix volume revolving switch, electrical sloping plate slightly raise;

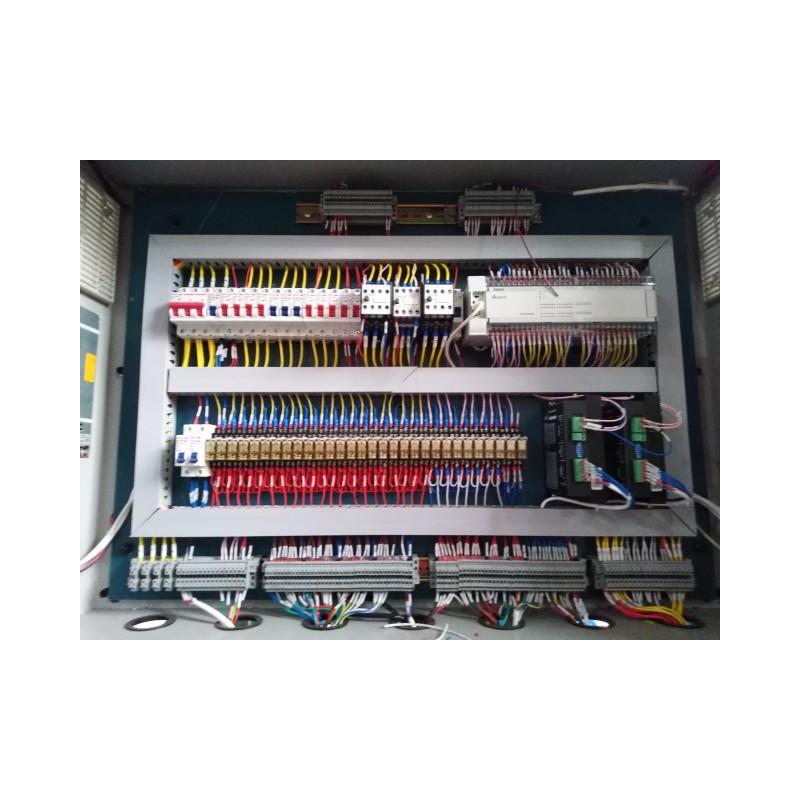

(e) Control mode: PLC control;

(f) Capacity: 9-10 seconds/ per grinding wheel (about 2880-3200 discs/eight hours);

(g) With pre-press function and cover board automatic convey;

(h) Operators:3-5 persons;

(i) Another descriptions: According to difference technics and products, this kinds machine can be made up to twenty four workstation, thirty two workstation etc.
