Product Description

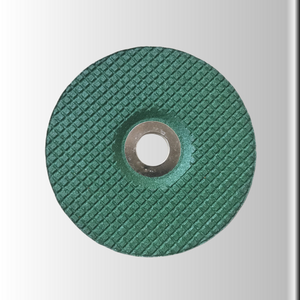

T27 Flexible Grinding Wheels feature revolutionary flexible grinding technology using special plastic binders and reinforced materials. This breakthrough design overcomes the rigidity limitations of traditional grinding wheels, enabling precision grinding in tight corners, narrow spaces, and complex contours that conventional tools cannot reach. Providing both high-efficiency material removal and superior surface finish, this represents our company's core technological innovation with significant market potential.
Operational Benefits
Cost savings: Reduces tool change frequency and processing time
| Size (mm) | Series | Max RPM | Speed | Box Size (cm) | Qty/Box | Gross Weight (kg) |
|---|---|---|---|---|---|---|
| 100×3.0×16 | AC/WA/GC | 13,700 | 80 m/s | 36×24×28 | 100 pcs | 14 |
| 115×3.0×22 | AC/WA/GC | 12,000 | 80 m/s | 37.5×25.5×14 | 80 pcs | 13 |
| 127×3.0×22 | AC/WA/GC | 11,000 | 80 m/s | 35.5×27.5×15 | 80 pcs | 18 |
| 180×3.0×22 | AC/WA/GC | 7,600 | 80 m/s | 41×19.5×19 | 50 pcs | 20 |
Pre-use Inspection
Check wheel integrity, no cracks or damage
Confirm specifications match machine requirements
Clean mounting surfaces
Proper Installation
Use matching flanges
Tighten nut evenly (recommended torque: 25-30N·m)
Ensure wheel is centered without eccentricity
Test Run
Run empty for 1-2 minutes after installation
Check running stability
Dress outer circumference and sides if needed
